• Silver alloy contacts for high reliability


• 3/8"-16 tin-plated copper studs


• Label recesses for circuit identification


• Includes 2145 Remote Switch

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required. Meets ISO 8846 and SAE J1171 external ignition protection requirements. IP66 - protected against powerful water jets.

• Silver alloy contacts provide high reliability for switching live loads


• LED output to remotely indicate switch state - requires optional LED


• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance


• One-piece stainless flange nuts ensure safe and secure connections


• Label recesses for circuit identification


• Retail package includes 2145 Remote Control Contura Switch

• Voltage Maximum Operating (contacts): 32V DC


• Voltage Maximum Operating (coil): 16V DC (12V DC), 32V DC (24V DC)


• Amperage Operating Current when changing state: 7A DC (12V DC), 4A DC (24V DC)


• Remote Control Switch Current: 100 mA


• Live Current Switching: 300A @ 12V DC - 10,000 Cycles

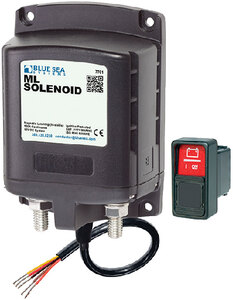

Blue Sea Systems 7701 ML Series Solenoid Switch, 12V
