• Requires 3" chimney parts


• Minimum 4' or maximum 8' of chimney is required, a 6' straight run with no elbows work best


• Chimneys 6' or longer we highly recommend a barometric damper


• Permanent fresh air vent needed in area of the unit


• Decorative laser cut valve cover


• Creates a dry heat to dry out moisture inside the vessel


• 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire


• Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil


• 1 turn hot water coil for 5-10 gal can be installed for water heating

The Newport Bulkhead Mounted Heater is ideal for boats 30'-35'. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.

• Requires 3" diameter chimney parts


• Minimum 4' or maximum 8' of chimney is required, a 6' straight run with no elbows work best


• Chimneys 6' or longer we highly recommend a barometric damper


• Permanent fresh air vent needed in area of the unit


• Decorative laser cut valve cover


• Creates a dry heat to dry out moisture inside the vessel


• 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire


• Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil


• 1 turn hot water coil for 5-10 gal can be installed for water heating

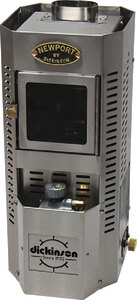

Dickinson Newport Bulkhead Mount Diesel Heater
